Introduction
Ever had to choose between two things, knowing both had their perks? That’s exactly what happens when businesses compare injection molding vs 3D printing. One’s great for mass production while the other is perfect for quick prototyping.
Injection molding means durability, efficiency, and cost savings at scale. 3D printing? Speed, flexibility, and no need for molds. But what’s best for your project? That depends.
In this guide, we’ll break down injection molding vs 3D printing – their workflows, costs, materials, and when to use each. Let’s dive in.
What Is Injection Molding & 3D Printing?
Whenever manufacturers compare 3D printing vs injection molding, they look at cost, production scale, and material compatibility. Let’s break down how both work, what they use, and where they shine.
What Is Injection Molding?
Picture this: A super-heated material gets injected into a mold under high pressure, then cools down into a perfectly shaped part. That’s injection molding.
It works with thermoplastics like ABS, Polypropylene, and Nylon, making it a go-to for high-volume, precise production. If you’ve got a large batch to manufacture, plastic injection molding is the way to go. If you want the technical details, check out our Injection Molding Services page.
Brief History & Applications
Fun fact: Injection molding has been around since the late 19th century. But it wasn’t until the mid-1900s that it took over industries, for example: automotive, electronics, medical devices. Today? It’s still king for mass production.
What Is 3D Printing?
Now, think about a printer. But instead of ink? Layers of material stacked one by one to create an object. That’s 3D printing, also known as additive manufacturing.
Unlike injection molding, 3D printing vs plastic injection molding makes sense when you need rapid prototypes, small batches, or custom designs.
Types of 3D Printing Technologies
3d printing vs injection molding strengths varies a lot, however, 3D printing different technologies also have varying strengths. Here are the top three:
- Fused Deposition Modeling (FDM):Uses thermoplastic filaments. Great for functional prototypes.
- Stereolithography (SLA):Works with liquid resin + UV light. Results? Super-detailed parts.
- Selective Laser Sintering (SLS):Uses powdered nylon, meaning no support structures needed.
Brief History & Applications
3D printing wasn’t even a thing until the 1980s. Then? It exploded. Aerospace. Healthcare (prosthetics!). Even fashion. Curious about how it all started? Read the history of 3D printing to see its evolution from concept to mainstream technology.
It’s the ultimate “what-you-see-is-what-you-get” technology. But, for mass production? One must choose injection mold vs 3d print.
How Do Injection Molding and 3D Printing Work?
Two different processes. Two different strengths.
When choosing between injection molding vs 3D printing, it all comes down to your project needs. One is fast and scalable. The other is flexible and perfect for customization. Let’s break it down.
Injection Molding: Step by Step
Think mass production. Think precision.

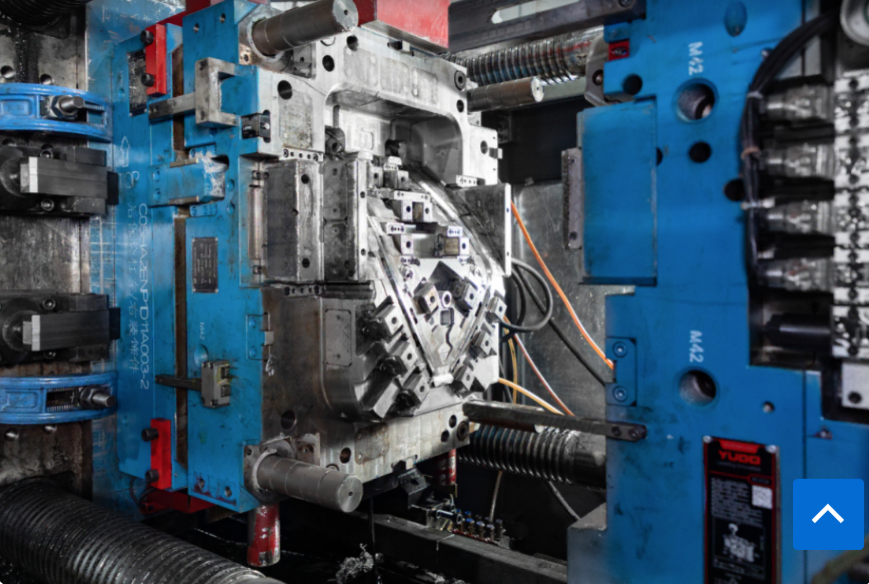

The process of injection molding involves injecting molten material into a mold, cooling it, and getting identical parts every time.
-
Mold Creation
Without mold, no injection molding. Molds are custom-made from steel or aluminum. This step alone can be expensive but pays off for large-scale production.
-
Melting & Material Prep
Plastic pellets go in. Heat and a rotating screw turn them into molten material. ABS, Nylon, Polypropylene—you name it.
-
Injection & Cooling
Molten plastic shoots into the mold at high pressure and the mold fills fast. Then cooling begins immediately to prevent defects.
-
Ejection & Finishing
Once solid, the part is ejected from the mold. Some are ready as-is while the others need trimming, polishing, or extra finishing.
That’s injection molding—fast, efficient, and repeatable.
3D Printing: Step by Step
Now, onto 3D printing. It is the no-mold, digital-first approach and perfect for prototypes and small batches.
-
CAD Design & File Prep
First, you create a 3D model in CAD software. That design gets sliced into layers for printing.
-
Printing, Layer by Layer
The printer builds the object one layer at a time. Different technologies do this differently:
- FDM– A nozzle melts and extrudes plastic onto a platform.
- SLA– A UV laser hardens liquid resin into solid layers.
- SLS– A laser fuses powdered material, creating durable parts.
Check out our 3D printing service technologies to learn more about each method.
-
Cooling & Post Processing
Some prints need extra curing, cooling, or finishing. For that support structures get removed and surfaces might be polished or coated.
Unlike injection molding, 3D printing is flexible. But slower.
If still unsure? The next section compares both side by side so you can pick what works best.
Comparing Injection Molding vs 3D Printing
Choosing between injection molding vs 3D printing? It’s not just about cost, speed, or material. It’s about what works best for your project. Let’s break it down.
Cost & Production Volume
Cost is tricky. What about injection molding? Expensive at the start. But once you make the mold, it’s a money saver for mass production. While injection molding requires an upfront mold investment, it becomes highly cost-effective for large production runs. 3D printing? No mold costs. Great for small batches and perfect for prototyping.
Here’s a quick comparison:
| Production Volume | Injection Molding | 3D Printing |
| 1–100 units | ❌ Too costly (mold expense) | ✅ No mold, affordable |
| 100–1,000 units | ⚠️ Still expensive (setup cost) | ✅ Ideal for small runs |
| 1,000+ units | ✅ Low cost per part | ❌ Slow & pricey |
Material Options
Both methods handle plastics, resins, and metals. But the flexibility? Different story.
| Material Type | Injection Molding | 3D Printing |
| Plastics | ✅ ABS, PC, Nylon, PEEK | ✅ PLA, ABS, PETG, Nylon |
| Resins | ❌ Limited options | ✅ SLA, biocompatible resins |
| Metals | ✅ Steel, Titanium | ✅ Aluminum, Titanium (SLS, DMLS) |
| Composites | ❌ Hard to find | ✅ Carbon fiber, glass-filled polymers |
If you need strong, industrial-grade materials, Injection molding all the way. But for custom materials and biocompatible options, 3D printing is the king.
Production Speed & Efficiency
Speed matters. And here’s where injection molding leaves 3D printing behind, if you need mass production. So, if you’re in a hurry and need thousands of parts, injection molding wins. But for prototypes, quick design tweaks, or custom pieces? 3D printing is unmatched.
| Factor | Injection Molding | 3D Printing |
| Setup Time | ⏳ Slow (mold creation needed) | ⚡ Fast (just hit print) |
| Cycle Time Per Part | ⚡ 15–60 sec | ⏳ Hours per part |
| Mass Production | ✅ Best for scaling up | ❌ Too slow for big orders |
Strength & Durability
Let’s talk toughness.
Injection-molded parts are: Denser. Stronger. Built to last. They handle pressure, heat, and impact better. 3D-printed parts are: More fragile, unless you use advanced materials. So, if durability matters, injection molding is your best bet. But if customization is your priority, 3D printing is the way to go.
| Strength Factor | Injection Molding | 3D Printing |
| Mechanical Strength | ✅ High, consistent structure | ❌ Weaker due to layer adhesion |
| Wear Resistance | ✅ Excellent | ⚠️ Varies by material & process |
| Load-Bearing Capacity | ✅ Strong | ❌ Limited |
Injection molding produces stronger parts with better impact resistance, making injection molding the preferred choice for automotive, aerospace, and industrial applications. While 3D printing can create intricate designs, it often lacks the mechanical integrity of injection-molded parts.
Design Complexity & Customization
Sometimes, a design just can’t fit into a mold. Literally. That’s where 3D printing shines. It doesn’t care about mold constraints—it can create intricate geometries that injection molding just can’t.
| Design Factor | Injection Molding | 3D Printing |
| Intricate Geometries | ❌ Limited (molds can’t handle tiny details) | ✅ Perfect for complex shapes |
| Customization | ❌ Expensive for unique parts | ✅ Super customizable |
I remember working on a small plastic casing design for a friend’s project. Thought about injection molding at first. But the cost? Not worth it for a one-off piece. 3D printing did the job faster and cheaper. That’s the power of design flexibility—especially for medical, dental, and architectural applications where every detail matters.
Environmental Impact
Sustainability is a hot topic in manufacturing. And honestly? Neither method is perfect.
| Environmental Factor | Injection Molding | 3D Printing |
| Material Waste | ✅ Minimal (optimized molds) | ✅ Less waste (additive process) |
| Recyclability | ✅ Thermoplastics are reusable | ❌ Some resins can’t be recycled |
| Energy Use | ⚠️ High (big machines, big power) | ✅ Lower (for small-scale prints) |
Injection molding wastes less but consumes more energy. Meanwhile, 3D printing produces less waste, but some materials aren’t recyclable.
Still, if sustainability is a key factor, look into biodegradable filaments for 3D printing or optimized mold designs for injection molding.
When to Use Injection Molding or 3D Printing?
Let’s get practical. Injection molding vs 3D printing—which one should you choose?
Best Use Cases for Injection Molding
If you’re thinking about mass production, durability, or precision, injection molding is the way to go.
✔️ Large-Scale Production: Need 1,000+ identical parts? This is the cheapest method for that. That’s why industries like automotive, electronics, and medical devices love it.
✔️ Durability & Strength: Molded parts last longer. Especially with materials like ABS, Nylon, or PEEK.

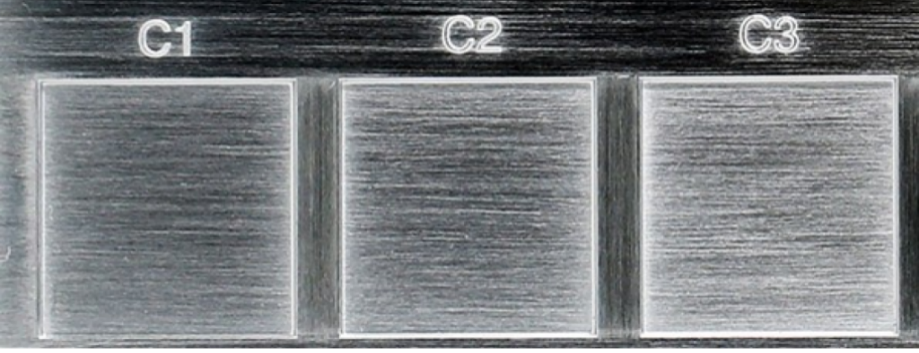

✔️ High Precision & Surface Finish: Smooth parts. Tight tolerances. If you want polished products straight out of the mold, this is the way.
🔗 Learn more about high-precision injection molding.
Best Use Cases for 3D Printing
3D printing is the king of flexibility. Whether it’s prototypes, small batches, or complex custom parts, it does the job.
✔️ Rapid Prototyping & Iteration: No molds = fast design changes. This is huge when testing new ideas before committing to mass production.
✔️ Small-Batch & On-Demand Manufacturing Print when needed. No warehousing costs. Simple as that.

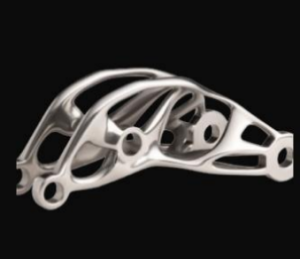

✔️ Complex & Custom Designs Lattice structures? Medical implants? Aerospace parts? 3D printing makes insanely intricate designs possible.
🔗 Explore how 3D printing enables cost-effective custom production.
Quick decision tip – Leave it to the experts for free:
Not sure which process fits your project? You don’t have to figure it out alone. The right choice eventually depends on your goals like cost, speed, durability, or complexity. But let’s be real—juggling all these considerations can be exhausting. That’s why working with experts matters. And that’s exactly where we come in.
Prepare for Your Project with Injection Molding or 3D Printing
Choosing the right manufacturing method can make or break your project. Trust me, I’ve seen it happen. Wrong choice? Wasted time. Wasted money. But when done right? Smooth sailing. Whether you need high-precision injection molding or advanced 3D printing, we’ve got you covered.
Koonze Model’s 3D Printing and Injection Molding Services:
Our Expertise in Rapid Manufacturing: At Koonze Model, we don’t just make parts. We create solutions. Whether it’s prototypes, small-batch orders, or full-scale production, we ensure quality, speed, and precision every step of the way.
✔ Cutting-Edge Tech & Expert Engineering

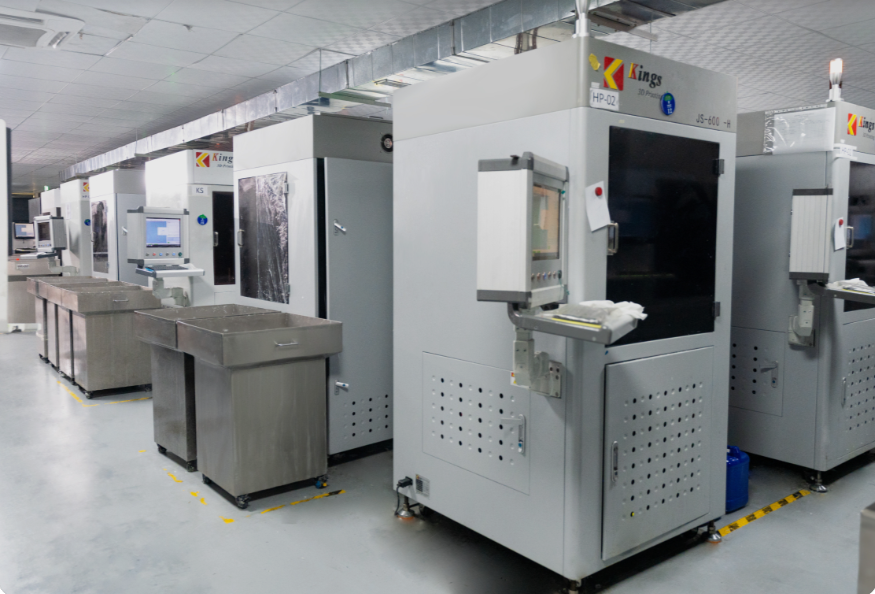

Our high-precision injection molding machines and top-tier 3D printing techniques (SLA, SLS, DMLS) handle even the most complex designs flawlessly.
✔ Diverse Material Selection
Plastics, resins, metals, composites—you name it, we offer it. Pick materials that fit your product’s function and aesthetics.
✔ Fast, Reliable Delivery
Deadlines matter. We get that. That’s why we’ve streamlined our processes to deliver high-quality parts in as fast as in 1 day, depending on project complexity. Prototypes? Ready in as little as 24-48 hours. Large-scale production? We keep the turnaround tight without compromising quality.
| Service Type | Turnaround Time |
| 3D Printing (Prototyping) | 24 to 72 hours |
| Small-Batch Production | 3 to 7 days |
| Injection Molding (Mass Production) | 2 to 4 weeks |
Contact us today to experience Koonze Model’s precision and efficiency firsthand.
FAQs
Can injection molding and 3D printing be used together?
Absolutely! Many companies use 3D printing for rapid prototyping before switching to injection molding for mass production. By this hybrid approach you can save cost at the early stages and increase efficiency when want to scale.
Want to do a mix and match of both, let’s do that!
What industries benefit most from injection molding and 3D printing??
Injection molding is widely used in automotive, electronics, and medical devices for high-volume, durable parts. Meanwhile, 3D printing thrives in aerospace, healthcare (prosthetics, dental implants), and product design, where customization and rapid iteration are key.
Will 3D Printing Replace Injection Molding?
Short answer? Nope.
Longer answer? Not completely, but it’s changing the game.
Sure, 3D printing is evolving fast. And it’s perfect for on-demand production but injection molding still rules when it comes to mass production and high-strength parts. What’s happening now? Hybrid manufacturing. Many companies are prototyping with 3D printing and then scaling up with injection molding. Best of both worlds as speed meets efficiency.
